Ecg machine
● Introduction:

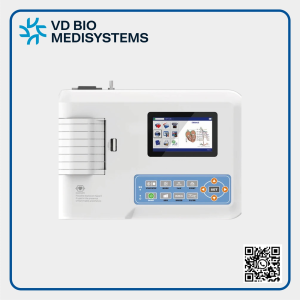

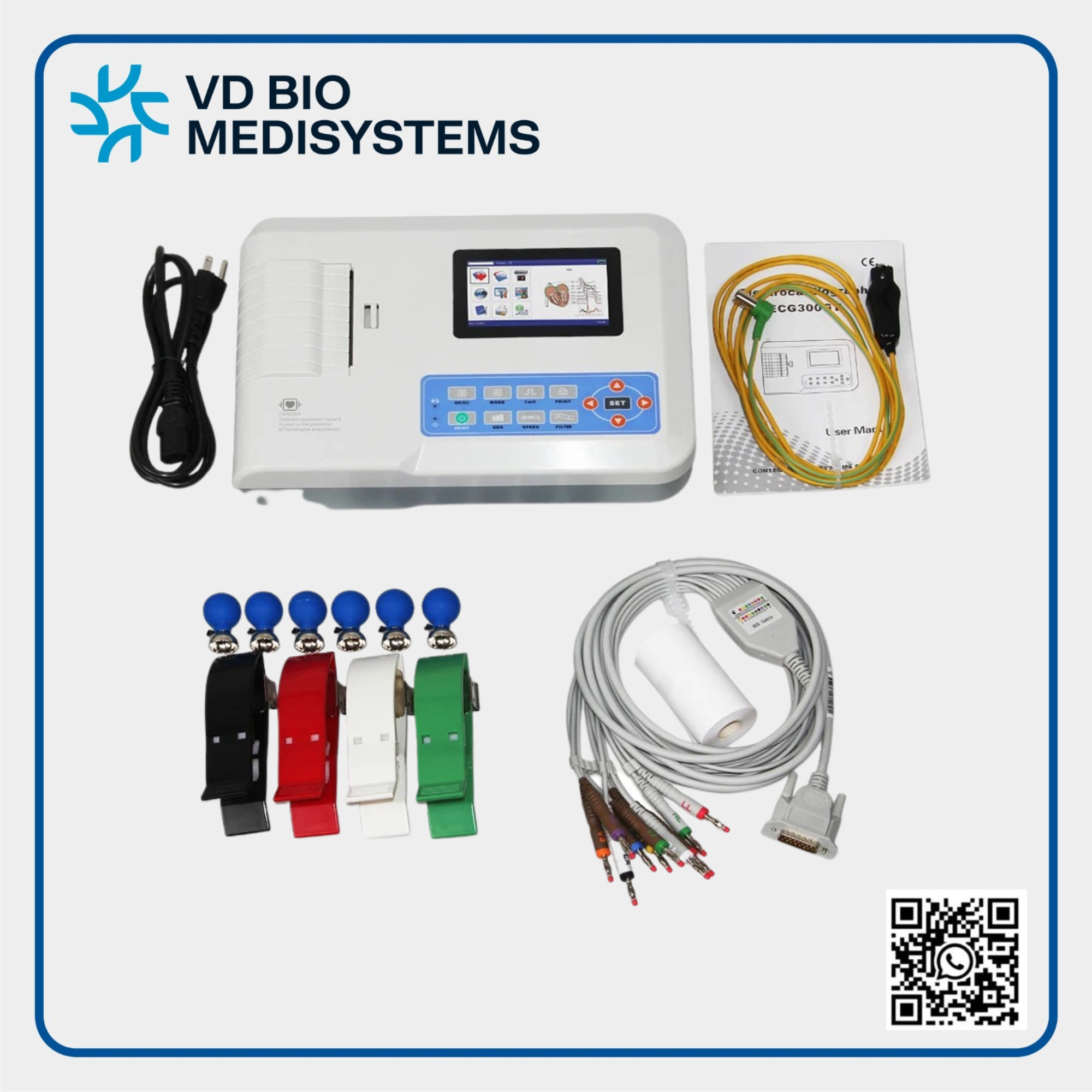

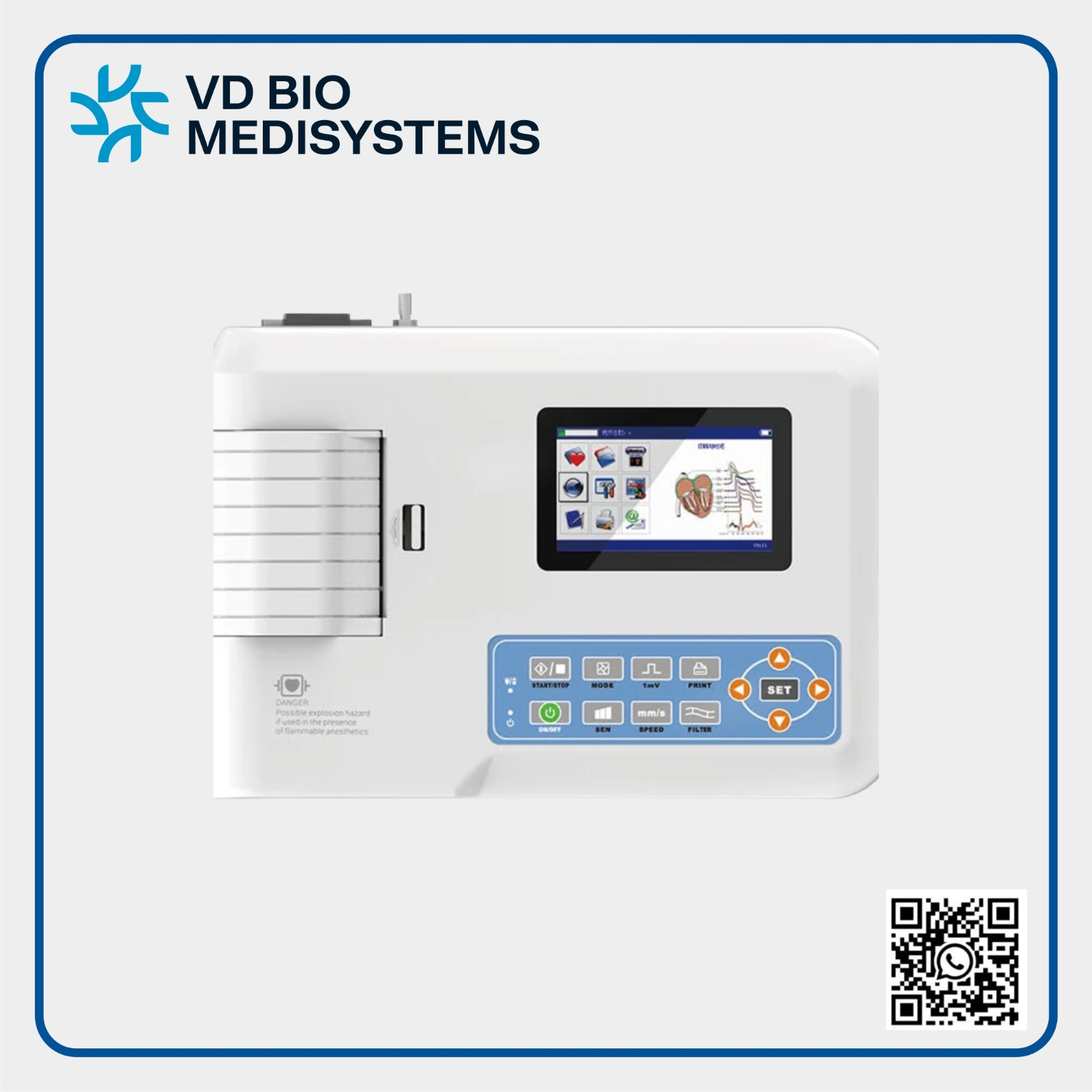

Ecg300ga Is An Electrocardiograph Which Can Collect 12-lead Ecg Signal And Print Waveform By The Thermal Printing
System. It Features In, Recording And Displaying Ecg Waveform In Auto/manual Mode, Measuring And Diagnosing Ecg Waveform Parameters Automatically, Prompting For “lead Off” And “lack Of Paper”, Multi-language Interface, Ac/dc, Selecting Any Rhythm Lead, Case Database Management.
● Function:
1)sync Collection For 12-lead Ecg, Adopt Digital Signal Processing Technology And Get
High-quality Ecg Waveform Via Power Frequency Filter, Baseline Filter And Emg Filter Of Ecg Signal.
2)display Of 3/6/12-lead Ecg,
Print Mode, Sensitivity, Paper Speed And Filter State, Etc. On One Screen, Convenient For Contrastively Diagnosing.
3)multiply Printing Modes And Formats, Including Manual, Auto 4×3, Auto 3×4+1, Auto 3×4, Auto 2×6+1, Auto 2×6, Auto 3-2+1, Auto 3-2, Auto 1×12+1, Auto 1×12, Rhythm 4, Rhythm 3 And Rhythm 2, Etc. Waveform Length Printed Can Be Adjusted, And With Time Print Function, Which Meets Different Requirements.
4)with The Functions Of Auto-analysis And Auto-diagnosis For Routine Ecg Parameters, Provide
Measurement Results And Auto-diagnosis Conclusion For Hr, P-r Interval, P Duration, Qrs Duration, T Duration, Q-t Interval, Q-tc,
P Axis, Qrs Axis, T Axis, R(v5), S(v1), R(v5)+s(v1), Etc. Which Reduces The Doctor’s Burden.
5)built-in Memory Stores Up To 1000 Cases, Convenient For Case Review And Statistic.
6)multi-language Interface And Report.
● Performance:
Input Mode: Floating And Defibrillation Protection
Frequency Response: 0.05hz ~ 150hz(-3db~+0.4db)
Cmrr: >60db, >100db(add Filter)
Time Constant: ≥ 3.2s
Patient Leak Current: <10µa // Calibration Voltage: 1mv
Sensitivity: 2.5, 5, 10, 20, 40 Mm/mv ±5%, Standard Sensitivity: 10mm/mv±2%
Noise Level: <15µvp-p // Input Circuit Current: ≤50na
Input Impedance: ≥50mΩ Sampling Accuracy: 12-bit
Safety Classification: Class I, Type Cf And Defibrillation-proof Applied Part
Recording Mode: Thermal Printing System
Auto Record: Set Record According To Auto Record Format And Mode, Automatically Switching Leads, Measuring And Analyzing.
Rhythm Record: Set Record According To Rhythm Record Format And Mode, Automatically Measuring And Analyzing.
Manual Record: Set Record According To Record Format, Manually Switching Leads.
Measurement Parameters: Hr, P-r Interval, P Duration, Qrs Duration, T Duration, Q-t Interval,
Q-tc, P Axis, Qrs Axis, T Axis, R(v5), S(v1), R(v5)+s(v1)
Paper Size: 80mm(w)×20m(l)
Sampling Frequency: 1000hz
Emg Interference Filter: 25hz/35hz (-3db)
Power Frequency Filter: Ac 50hz/60hz(-20db)
Paper Speed Auto: 25, 50mm/s, ±5%
Rhythm: 25, 50mm/s, ±5%
Manual: 5, 6.25, 10, 12.5, 25, 50mm/s, ±5%
Power Supply: Ac: 100v~240v(50/60hz) Dc: 7.4v/3500mah Rechargeable Lithium Battery Fuse
Fuse Specification: Two Ac Time Lag Fuse(φ5×20mm), T1.6al250v
Waterproof Degree: Ipx0, Working Mode: Continuous Working
