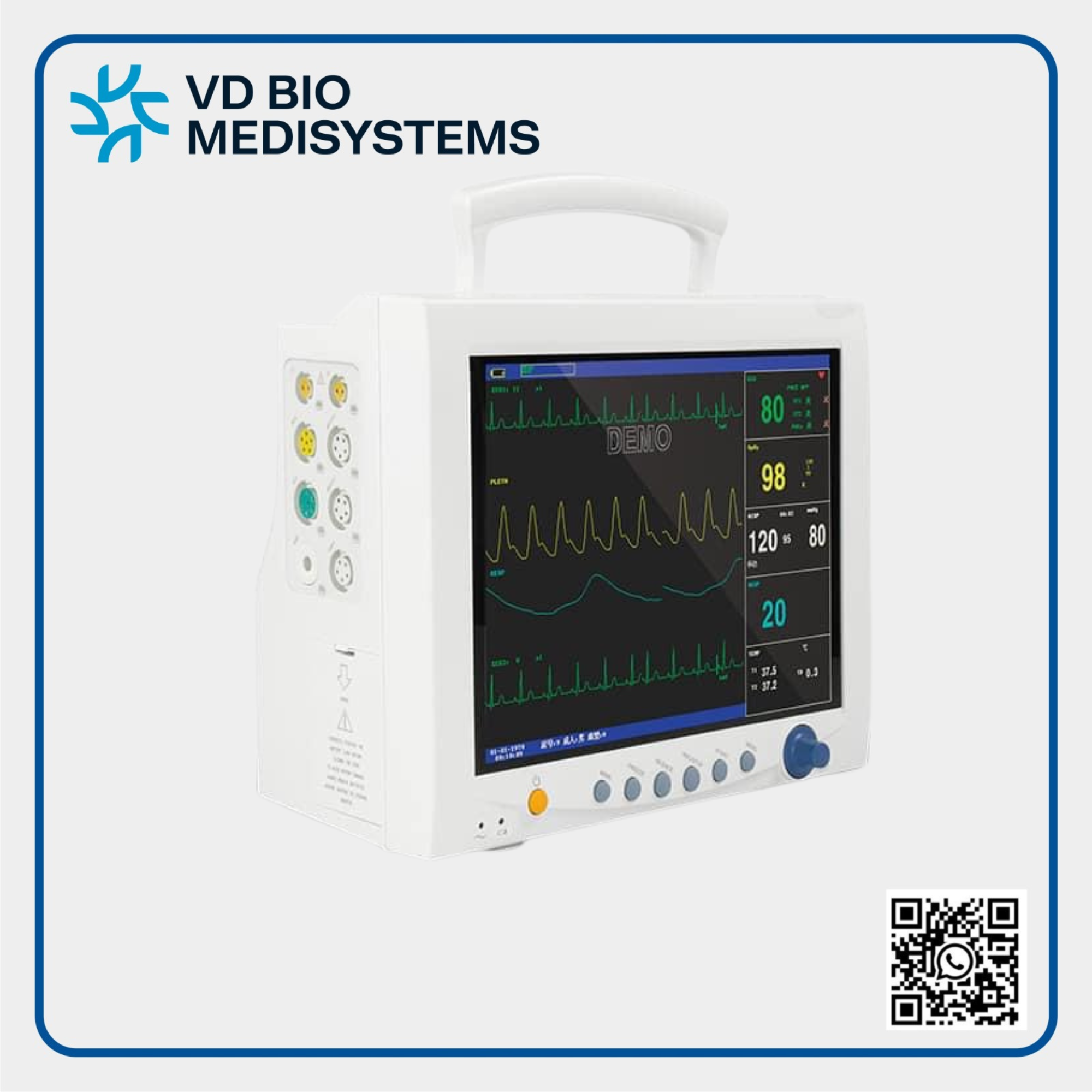

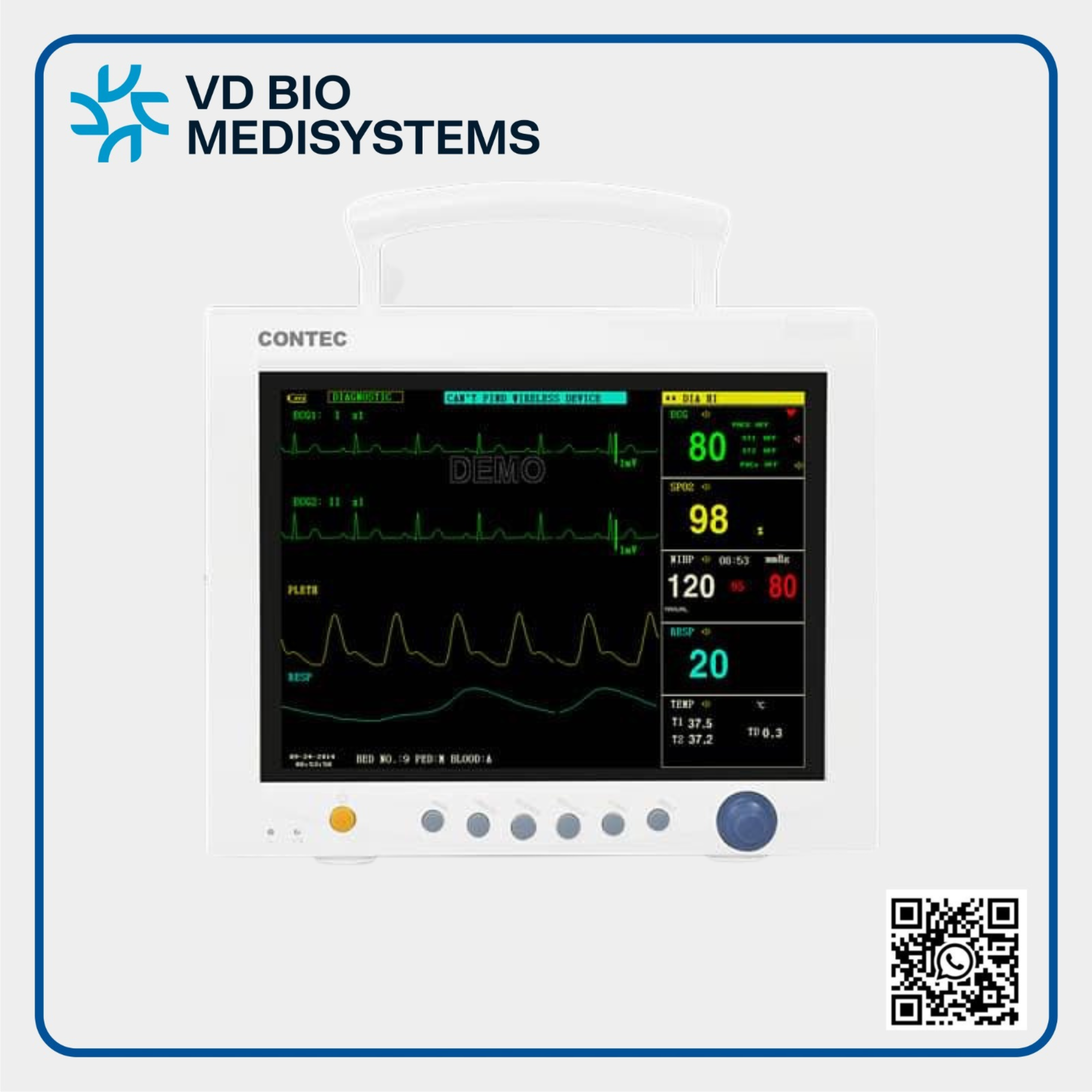

Contec Multipara Monitor Cms7000, Multipara monitor

Description

Vital signs monitors

Features • 12.1” Tft Color Lcd, Multi-language Interface • Fanless Design, Quiet, Energy-saving, And Clean, Which Reduces The Possibility Of Cross-infection. • All-round Monitor For Adult, Pediatric, And Neonate. • With The Standard Interface, Oxygen Graph, Trend Graph, Big Character Interface, And View Bed, Convenient To Observe. • Finish All Operations With Keys And Knobs. • Maximum 8-channel Waveform Synchronous Display. • Display 7-lead Ecg Waveform On One Screen, Cascade Ecg Waveform Display • Adopt Digital Spo2 Technology, Anti-motion, And Anti-ambient Light Interference, And Measurement Can Be Performed Under The Circumstance Of Weak Filling. • Heart Rate Variability (hrv) Analysis Function • Nibp Measurement Mode: Manual/auto/stat, Storage For 4800-group Nibp Data. • Review For 71 Alarm Events Of All Parameters And 60 Arrhythmia Alarm Events. • Drug Concentration Calculation And Titration Table Functions. • One-touch Printing Of Trend Graph • Connect To Central Monitoring System By 3g, Wi-fi, Or Wired Mode. • Ac/dc, Built-in Rechargeable Lithium Battery Achieves Uninterrupted Monitoring. • Anti-high Frequency Surgical Unit, Defibrillation-proof (special Leads Are Necessary). Performance ▲ecg • Lead Mode: 3-lead Or 5-lead • Lead Selection: I, Ii, Iii, Avr, Avl, Avf, V • Waveform: 5-lead, Dual-channel • 3-lead, Single-channel • Gain: 2.5mm/mv, 5.0mm/mv, 10mm/mv, 20mm/mv, 40mm/mv • Scan Speed: 12.5mm/s, 25 Mm/s, 50 Mm/s Hr: • Measurement And Alarm Range: 15～350 Bpm • Accuracy: ±1 % Or ±1 Bpm, Whichever Is Greater • Alarm Accuracy: ± 2 Bpm • Resolution: 1 Bpm • St-segment Monitoring: • Measurement And Alarm Range: -2.0 Mv ～ +2.0 Mv • Accuracy: -0.8 Mv～+0.8 Mv ±0.04 Mv Or ±10%, Whichever Is Greater • Other Range: Unspecified • Arrhythmia Analysis: Asystole, Vfib/vtac, Couplet, Bigeminy, Trigeminy, R On T, Vt>2, • Pvc, Tachy, Brady, Missed Beats, Pnp, Pnc • Pacemaker: Yes ▲resp • Method: R-f(ra-ll) Impedance • Respiration Rate: • Measurement And Alarm Range: 0～150 Rpm • Resolution: 1 Rpm • Measurement Accuracy: ±2 Rpm • Alarm Accuracy: ±3 Rpm • Apnea Alarm: 10～40s • Scan Speed: 6.25 Mm/s, 12.5 Mm/s, 25 Mm/s
