Description

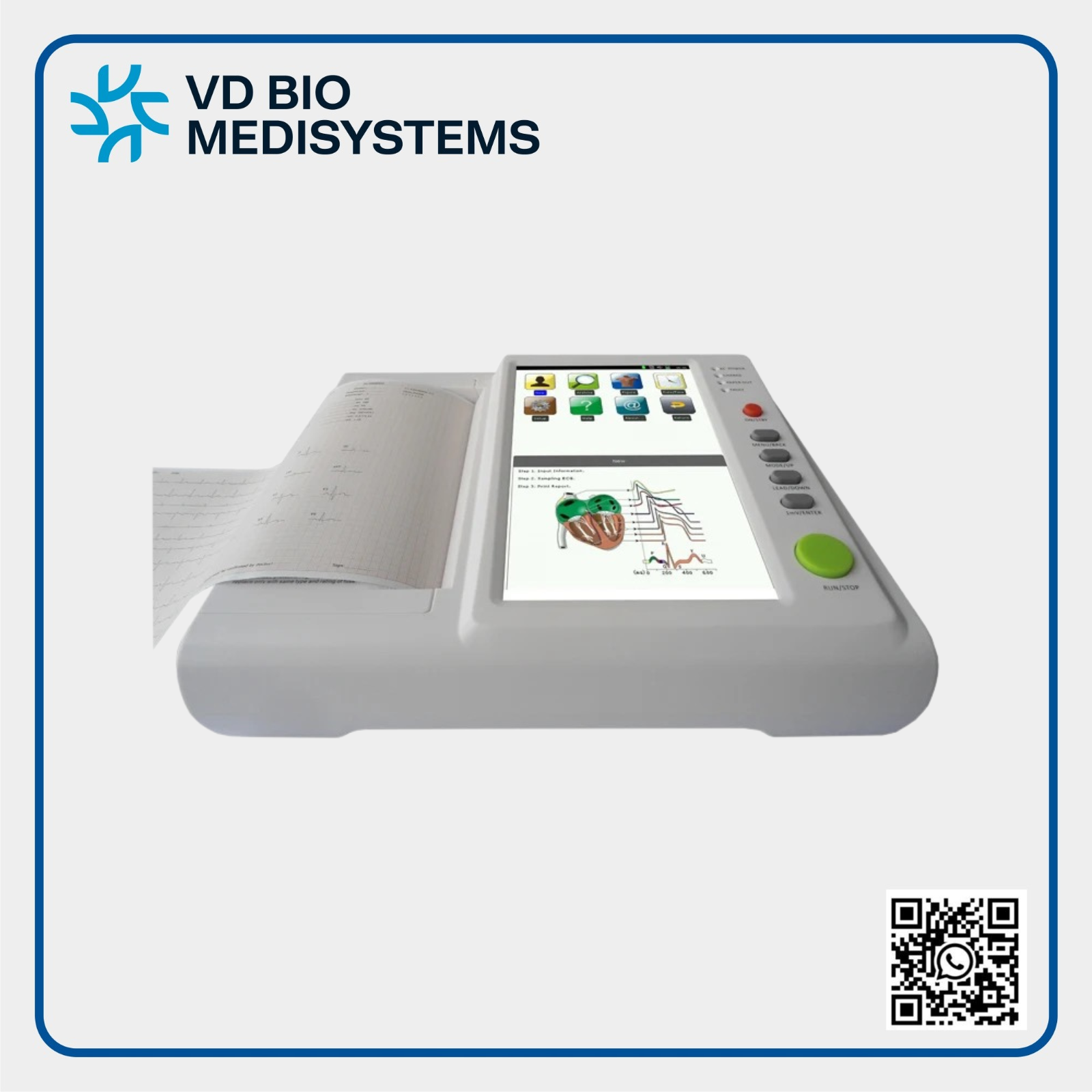

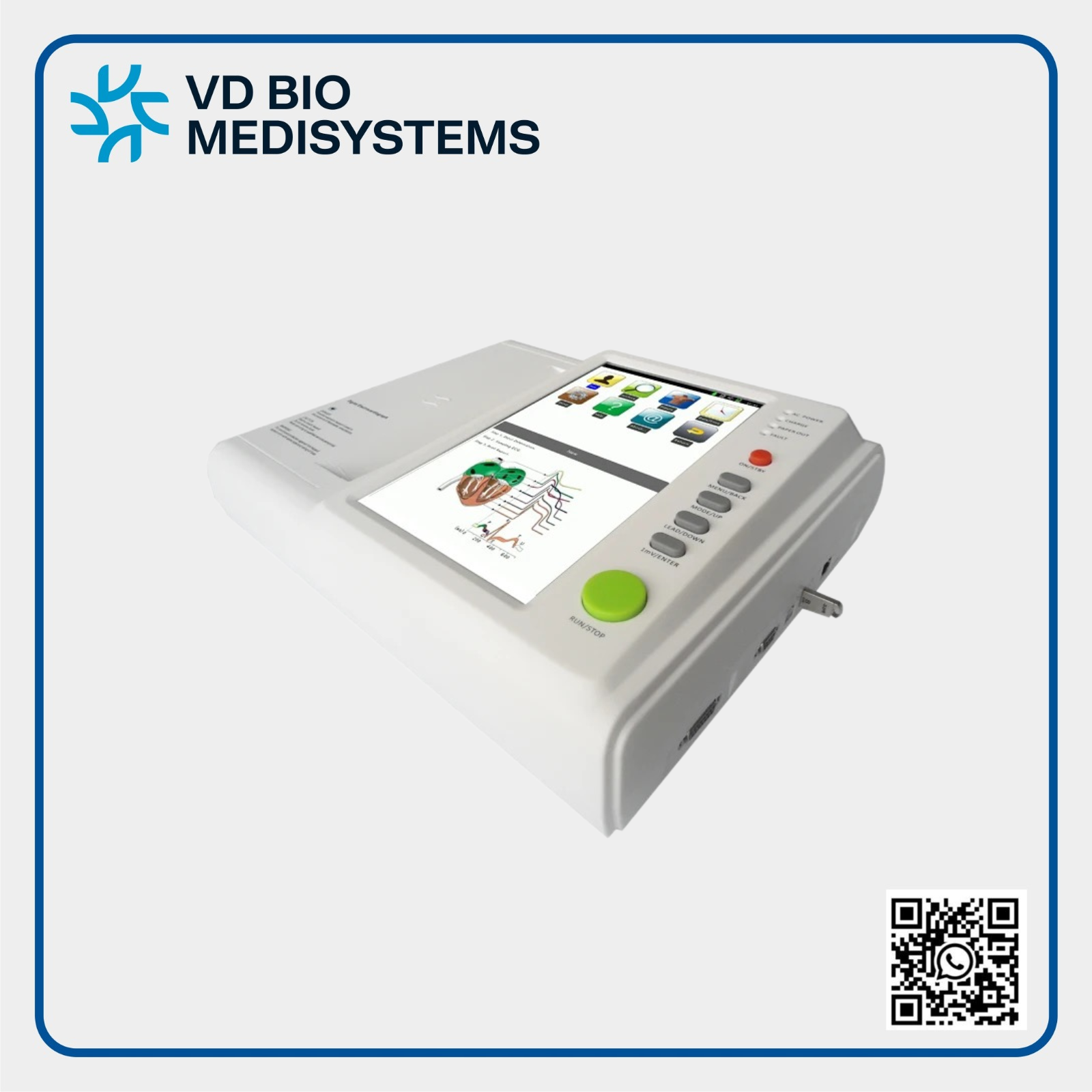

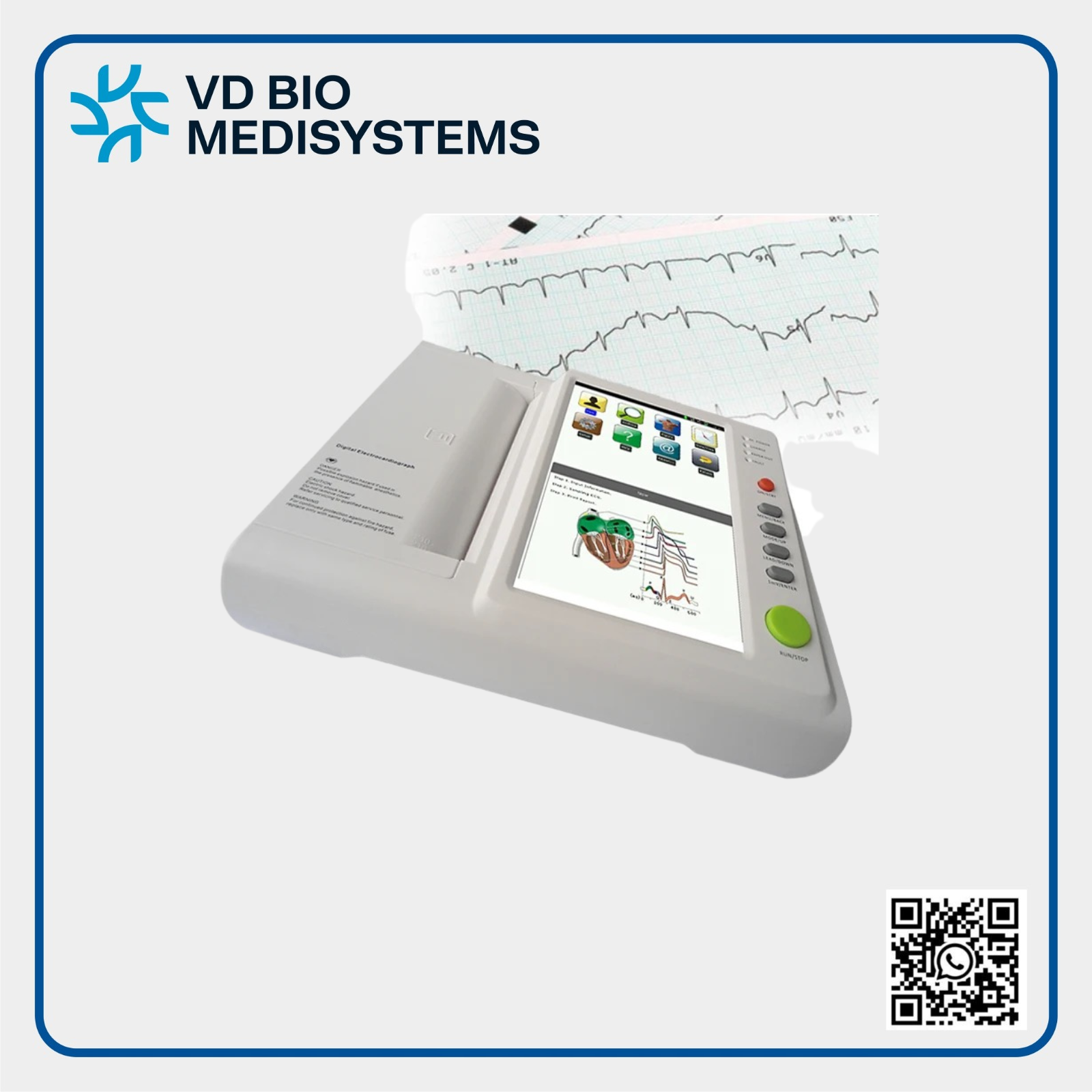

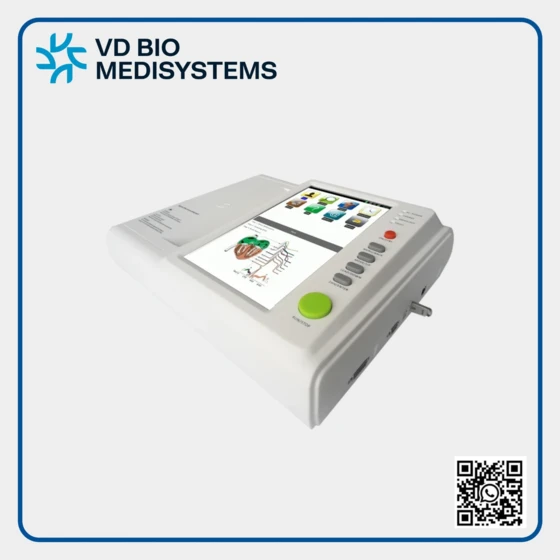

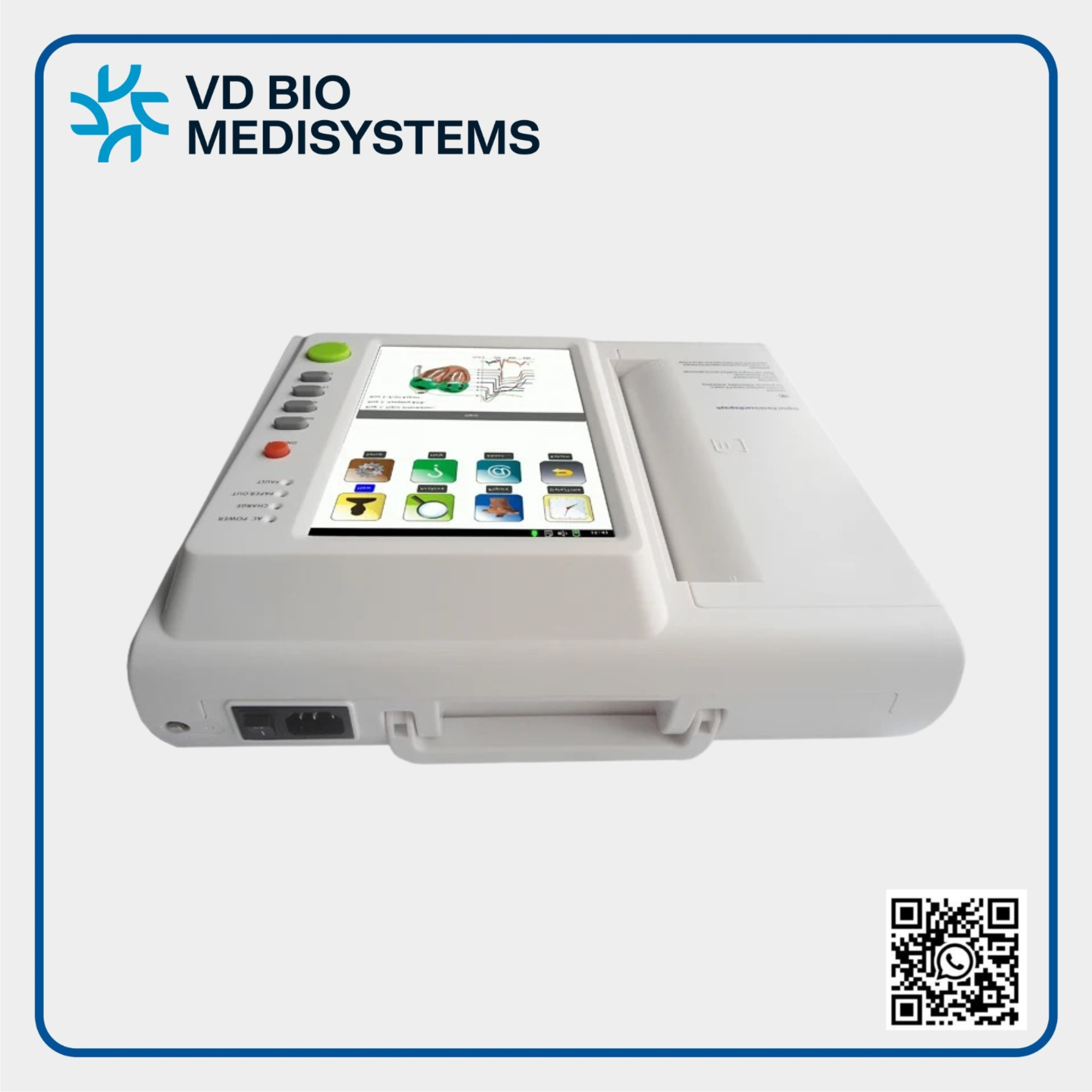

Ecg machine
General Features
• 12 Lead Ecg Synchronous Sampling System
• Modern In Design, Light In Weight, Compact In Size
• Simultaneously Acquisition Of 12 Lead, Full Screen Display Of 12 Channel Ecg Waveforms
• Thermal Printer With 216mm Print Paper, Synchronization Print, It Is High Resolution Thermo Sensitive Printer And Thermal-array (8 Dots/mm), You Should Not Adjust Anything Frequency Response Is Up To 150hz
• 10.2" Colour Touch-screen, Both Push-button And Touch Operation
• Sensitive Filters Of Ads, Hum And Emg
• Automatic Measurement, Calculation, Analysis, Waveform Freezing
• Support Usb Flash Disk & Sd Memory
• Data Transmitting To Pc Via Rs232/usb (ecg Workstation Software)
• Patient's Information Can Be Input
• Historical Data Can Be Reviewed And Printed
• The Machine Can Store Over 500 Ecg Reports In Its Built-in Flash
• Built-in Rechargeable Lithium-ion Battery, Ac/dc Power Conversion
• Sleep Mode To Save Energy And Extend Lcd Life
• The Device Can Record Real Time Clear And Exact 12 Channel Ecg Waveform And Remark Continually, The Remark Includes: Lead Sign, Sensitivity, Paper Speed, Filter State, Etc.
• Portable Design With Hidden Handle, Convenient To Carry
• Lead Off & Lack Off Paper Detection Function
• 7 Level Printing Thickness Adjustable
• Adapt To 110-230v 50/60hz Ac Power Supply
Technical Specification
• Input Mode: Floating And Defibrillation Protection
• Voltage Tolerance: +500mv
• Frequency Response: 0.05hz~ 150hz (-3db~+0.4db)
• Cmrr: 2100db (with Ac Filter) || Time Constant: > 3.2s
• Patient Leak Current: <10ua>50m | | Resolution: 12-bit/1000 Hz
• Recording Mode: High Resolution Thermal Printing System
• Auto Record: Set Record According To Auto Record Format And Mode, Auto Switching Leads, Measuring And Analysing
• Manual Record: Set Record According To Record Format, Manually Switching Leads
• Filter: Ac, Ecg Filter | | Drift Filter: Anti-drift System
• Paper Speed Auto: 25, 50mm/s +3%
• Power Supply Ac: 100v ~ 240v(50/60hz), Dc: 11.1v/3800mah Rechargeable Lithium Battery
• Fuse Specification: Ac Time Lag Fuse (ф5x20mm), T1.6al 250v
• Dimension: 360mm X 250mm X 68 Mm
