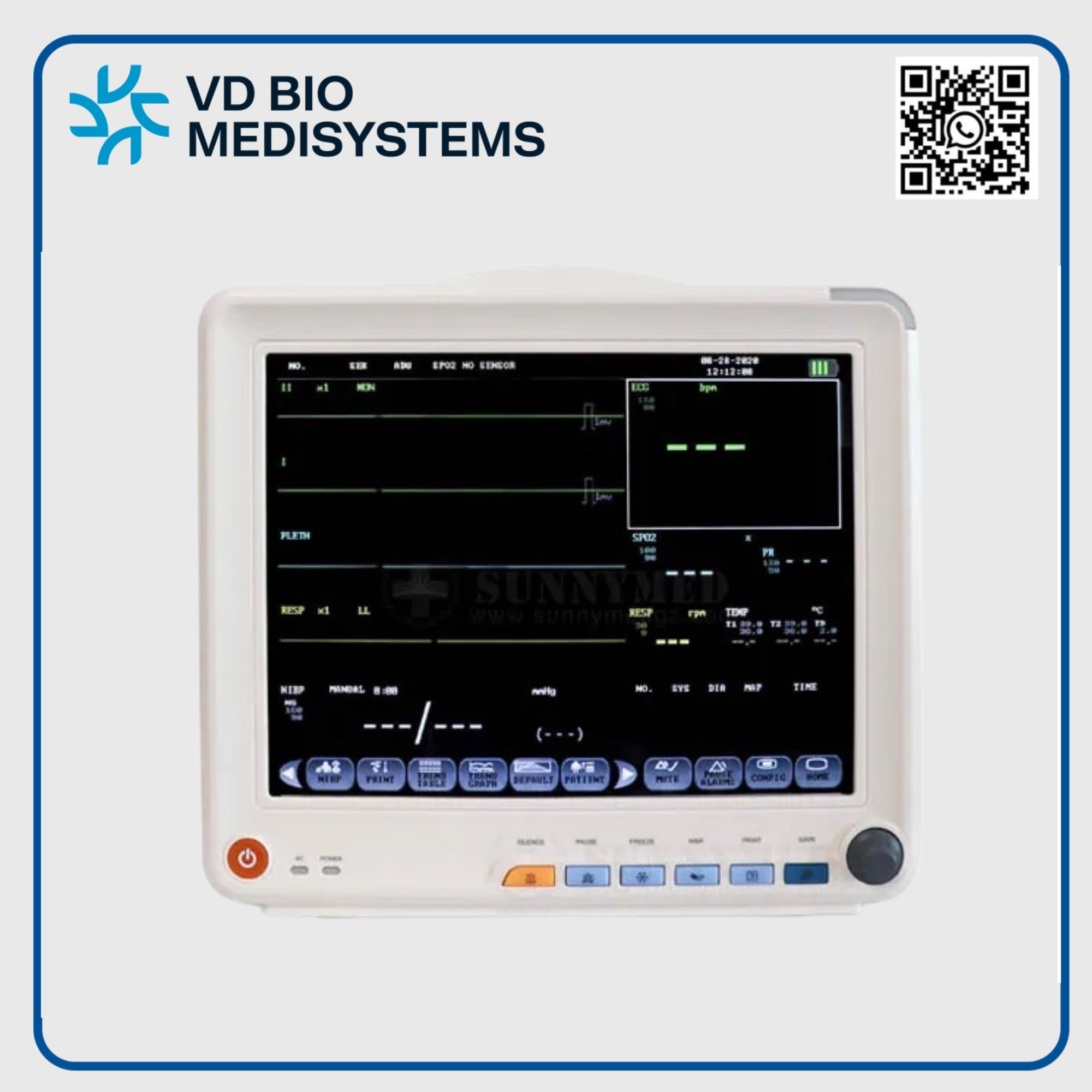

Vd Bio Medisystems 5 Para Monitor Vd-9000b, Multipara monitor

Description

Cardiac patient monitor

Product Description Features: • Suitable For Adult, Pediatric And Neonatal Patients • 12.1'' Tft Color Lcd With Touch Screen • Parameters: Ecg, Nibp, Spo2, Pulse Rate, Respiration, Temperature And Ibp (upgradable) • Maximum 8-channel Waveform Synchronous Display • Graphic And Tabular Trends For 96 Hours For All Formats • Multi-screen Format • Powerful Data Management And Storage Capacity, 500 Nibp Measurement Data Can Be Storage And Recall • Ac/dc, Built-in Rechargeable Lithium Battery Achieves Uninterrupted Monitoring • Visual And Audio Alarms, Adjustable. • Measurement Mode: Manual/auto/stat Specifications Ecg: • 5 Lead Or 12 Lead Selectable • Input: 5 Lead; Ra, Lt, Rl, Ll, V Or R, L, N, F, C • Lead Selection: I, Ii, Iii, Avr, Avl, Avf, Vx, Cal • Gain Selection: ×25, ×0.5, ×1, ×2, Auto • Sweep Speed: 12.5mm/s, 25mm/s, 50mm/s • Accuracy: ±1bpm Or ±1% Whichever Is Grater • Protection: Withstand 4000v Ac/50hz Voltage In Isolation Against Electrosurgical And Defibrillation • Calibration Signal: 1mv±5% • Operation Modes, Diagnostic, Monitor, Surgery • Heart Rate Range: Adult: 15-3000bpm; Pediatric/neonatal: 15-350bpm • Measurement Range: -2.0mv To 2.0mv • St Detection: Yes, • Arrhythmia Analysis: Yes • Alarm: Yes, Audible And Visual Alarm, Alarm Events Recallable. Nibp: • Method: Oscillometry • Mode: Manual/auto/stat • Measurement Range: Adult 10-270mmhg • Measurement Type: Systolic, Diastolic, Mean • Resolution: 1mmhg • Nibp Accuracy: Mean ±5mmhg, Sd ±8mmhg • Alarm: Sys/dia/mean Respiration: • Method: Ra-ll Impedance • Measurement Range: Adult: 0-120rpm, Paediatric/neonatal: 0-150rpm • Apnea Alarm: Yes Spo2: • Measurement Range: 0%-100% • Accuracy: ±2% (70%-100%); 0%-69% Unspecified. • Alarm Range: 0-100% Pulse Rate: • Measurement Range: 10 - 270 • Resolution: 1bpm • Accuracy: ±2pm Or ±2% Temperature: • Resolution: 0.2 0c • Channel: Dual-channel • Measurement Range: 0-50 0c Ibp (upgradable): • Channel: 2 • Pressure Transducer: Sensitivity: 5(mv/v/mmhg) • Transducer Sites: Art, Pa, Cvp, Rap, Lap, Icp • Alarm Range: -10 To 300 Mmhg Other Specifications: • Net Weight: 3.9kg Content Of Box • Monitor • Power Connector • Adult/neonatal Cuff + Cable (based On Selection) • Ecg Leads • Spo2 Probe • Temperature Probe • User Manual Warranty : 1 Year
