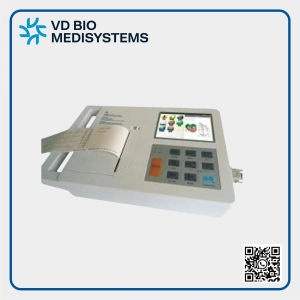

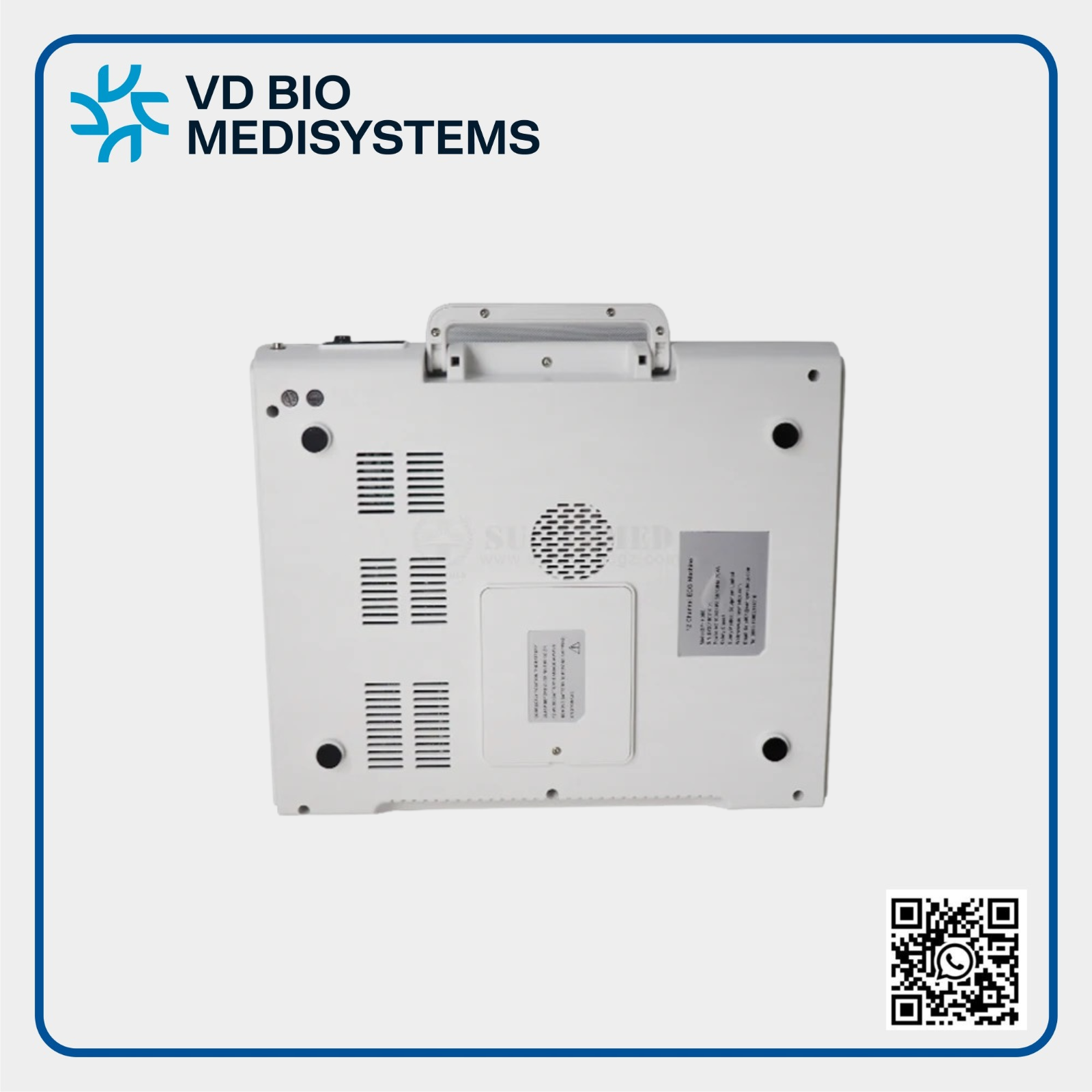

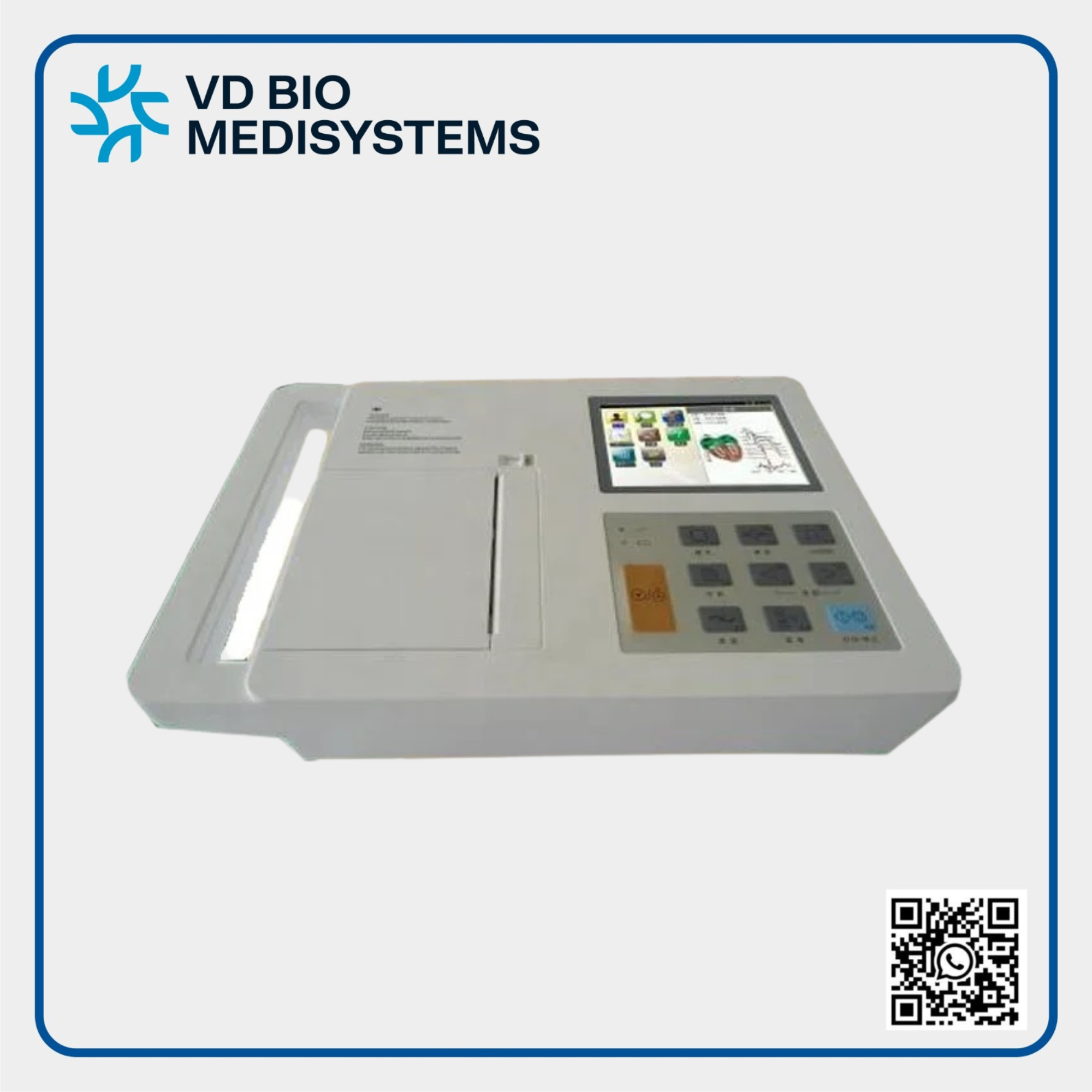

Vd Bio Medisystems 6 Channel Ecg Vd-600e, Ecg machine

Description

Ecg machine

General Features • 12 Lead Ecg Synchronous Sampling System • Thermal Printer With 110mm Print Paper, Synchronization Print • 5.7" Colour Touch-screen, Both Push-button And Touch Operation • Automatic Measurement, Calculation, Analysis, Waveform Freezing • Support Usb Flash Disk & Sd Memory • Data Transmitting To Pc Via Rs232/usb • Patient's Information Can Be Input • Historical Data Can Be Reviewed And Printed • Built-in Rechargeable Lithium-ion Battery, Ac/dc Power Conversion • Sleep Mode To Save Energy And Extend Lcd Life • Portable Design With Hidden Handle, Convenient To Carry • Lead Off & Lack Off Paper Detection Function • 7 Level Printing Thickness Adjustable • Adapt To 110-230v 50/60hz Ac Power Supply Technical Specification • Input Mode: Floating And Defibrillation Protection • Voltage Tolerance: +500mv • Frequency Response: 0.05hz ~ 150hz (-3db~+0.4db) • Cmrr: ≥100db (with Ac Filter) | | Time Constant: ≥ 3.2s • Patient Leak Current: <10 A | | Calibration Voltage: 1mv +3% • Sensitivity: 5, 10, 20 Mm/mv +5%, Standard Sensitivity: 10mm/mv +2% • Noise Level: <15uvp-p || Input Circuit Current: ≤ 0.1 Ua • Input Impedance: ≥50m || Resolution: 12-bit/1000hz • Recording Mode: High Resolution Thermal Printing System • • Auto Record: Set Record According To Auto Record Format And Mode, Auto Switching Leads, Measuring And Analysing • Manual Record: Set Record According To Record Format, Manually Switching Leads • Filter: Ac, Ecg Filter | | Drift Filter: Anti-drift System • Paper Speed Auto: 25, 50mm/s +3% • Power Supply Ac: 100v ~ 240v(50/60hz), Dc: 11.1v/3800mah Rechargeable Lithium Battery • Fuse Specification: Ac Time Lag Fuse (o5×20mm), T1.6al 250v • Dimension: 360mm X 250mm X 68mm
