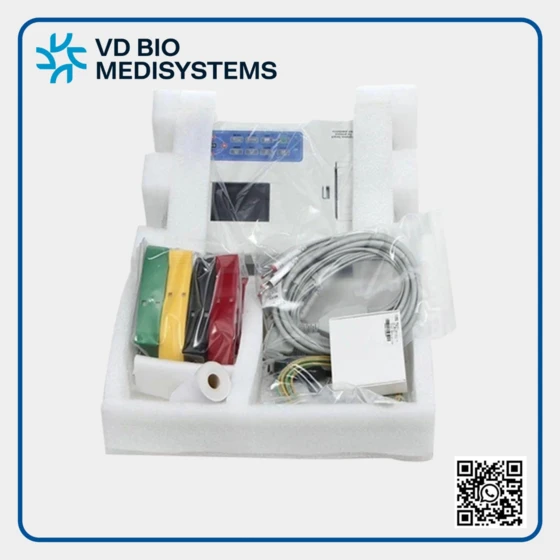

Contec 3 Channel Ecg Machine CMS300GA — Ecg Machine

● Introduction: ECG300GA is an Electrocardiograph which can collect 12-lead ECG signal and print waveform by the thermal printing system. It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for “Lead off” and “Lack of paper”, multi-language interface, AC/DC, selecting any rhythm lead, case database management. ● Function: 1)Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal. 2)Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing. 3)Multiply printing modes and formats, including manual, auto 4×3, auto 3×4+1, auto 3×4, auto 2×6+1, auto 2×6, auto 3-2+1, auto 3-2, auto 1×12+1, auto 1×12, rhythm 4, rhythm 3 and rhythm 2, etc. Waveform length printed can be adjusted, and with time print function, which meets different requirements. 4)With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden. 5)Built-in memory stores up to 1000 cases, convenient for case review and statistic. 6)Multi-language interface and report. ● Performance: Input mode: floating and defibrillation protection Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB) CMRR: >60dB, >100dB(add filter) Time constant: ≥ 3.2s Patient leak current: <10µA // Calibration voltage: 1mV Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV±2% Noise level: <15µVp-p // Input circuit current: ≤50nA Input impedance: ≥50MΩ Sampling accuracy: 12-bit Safety classification: class I, type CF and defibrillation-proof applied part Recording mode: thermal printing system Auto record: set record according to auto record format and mode, automatically switching leads, measuring and analyzing. Rhythm record: set record according to rhythm record format and mode, automatically measuring and analyzing. Manual record: set record according to record format, manually switching leads. Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1) Paper size: 80mm(W)×20m(L) Sampling frequency: 1000Hz EMG interference filter: 25Hz/35Hz (-3dB) Power frequency filter: AC 50Hz/60Hz(-20dB) Paper speed Auto: 25, 50mm/s, ±5% Rhythm: 25, 50mm/s, ±5% Manual: 5, 6.25, 10, 12.5, 25, 50mm/s, ±5% Power supply: AC: 100V~240V(50/60Hz) DC: 7.4V/3500mAh rechargeable lithium battery Fuse Fuse specification: two AC time lag fuse(φ5×20mm), T1.6AL250V Waterproof degree: IPX0, Working mode: continuous working
