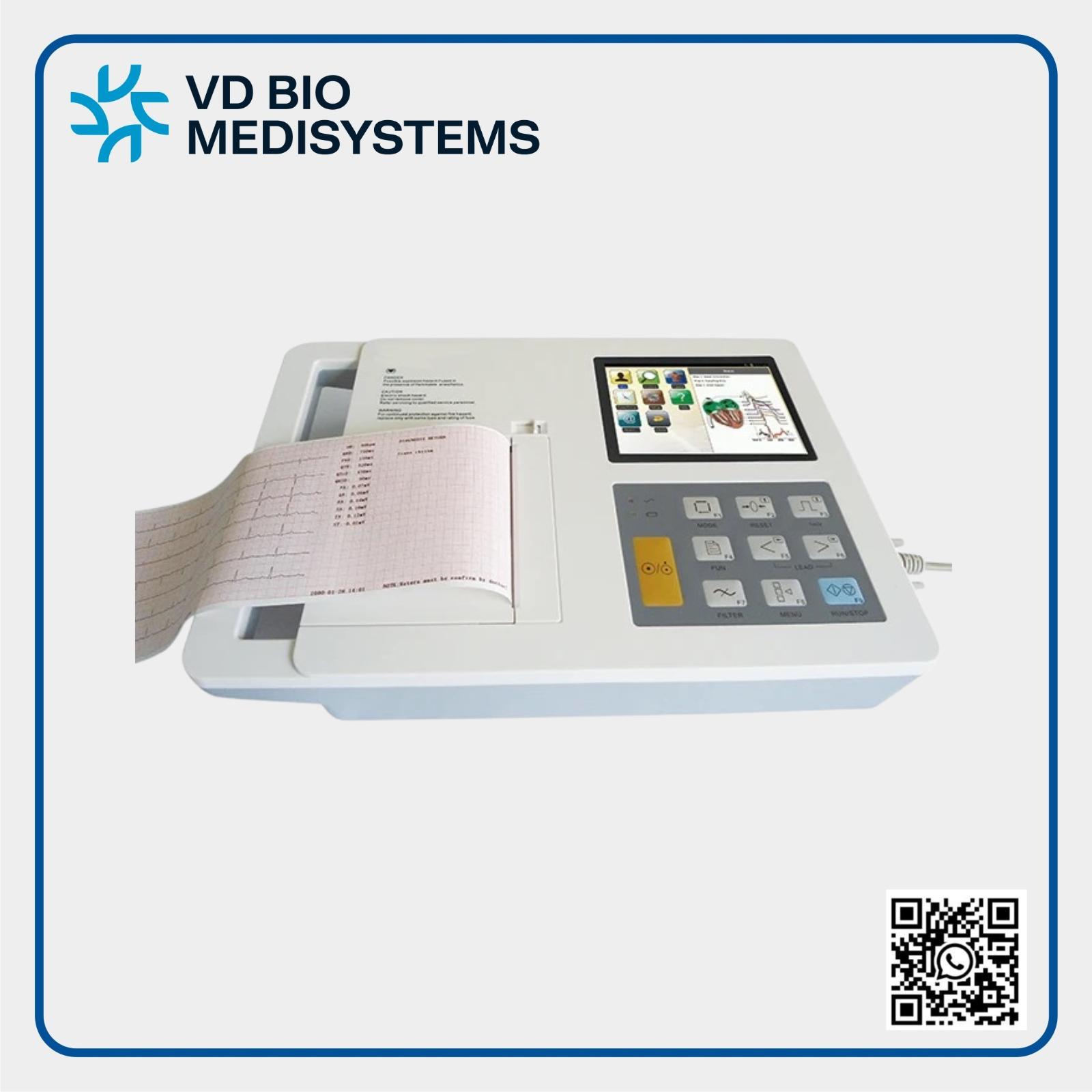

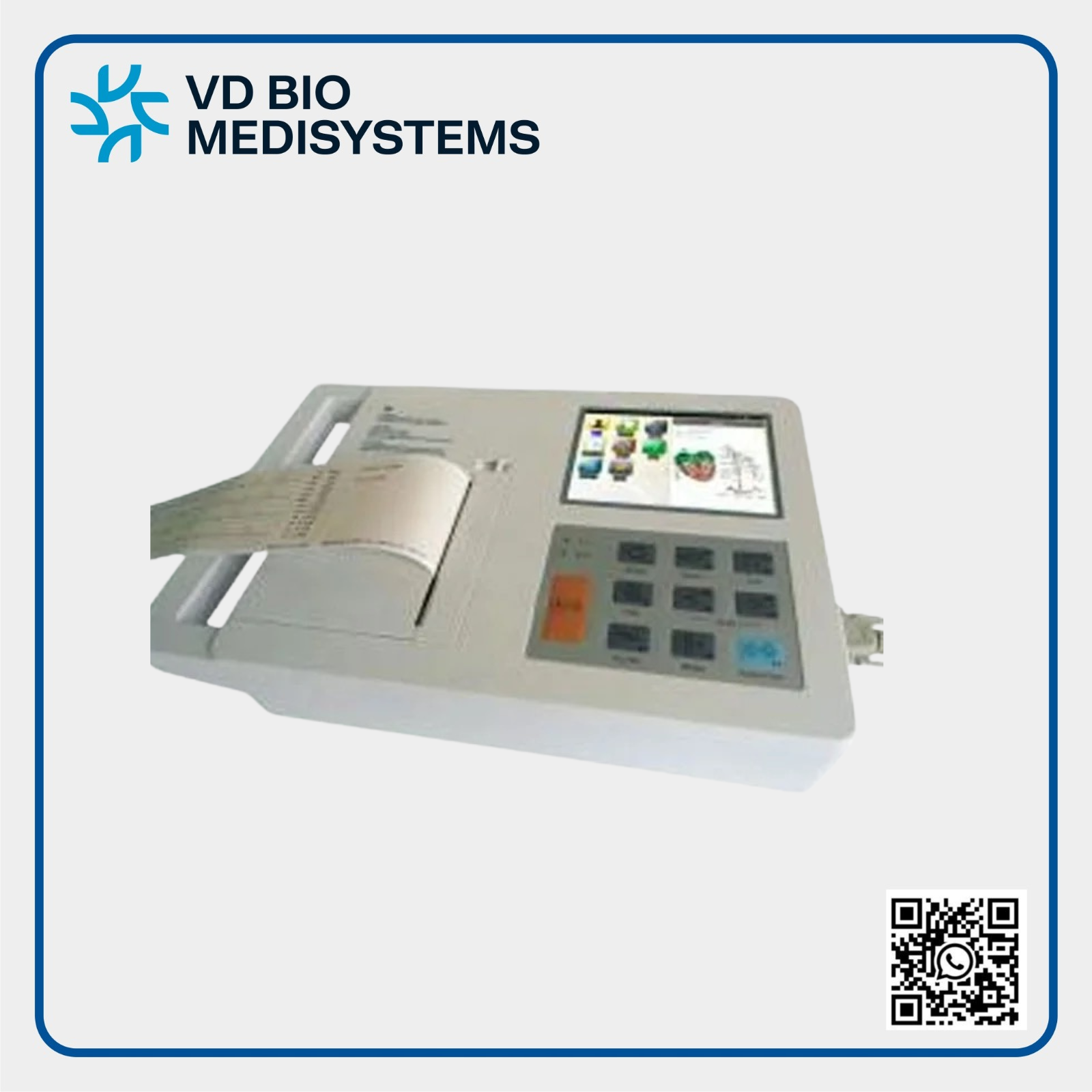

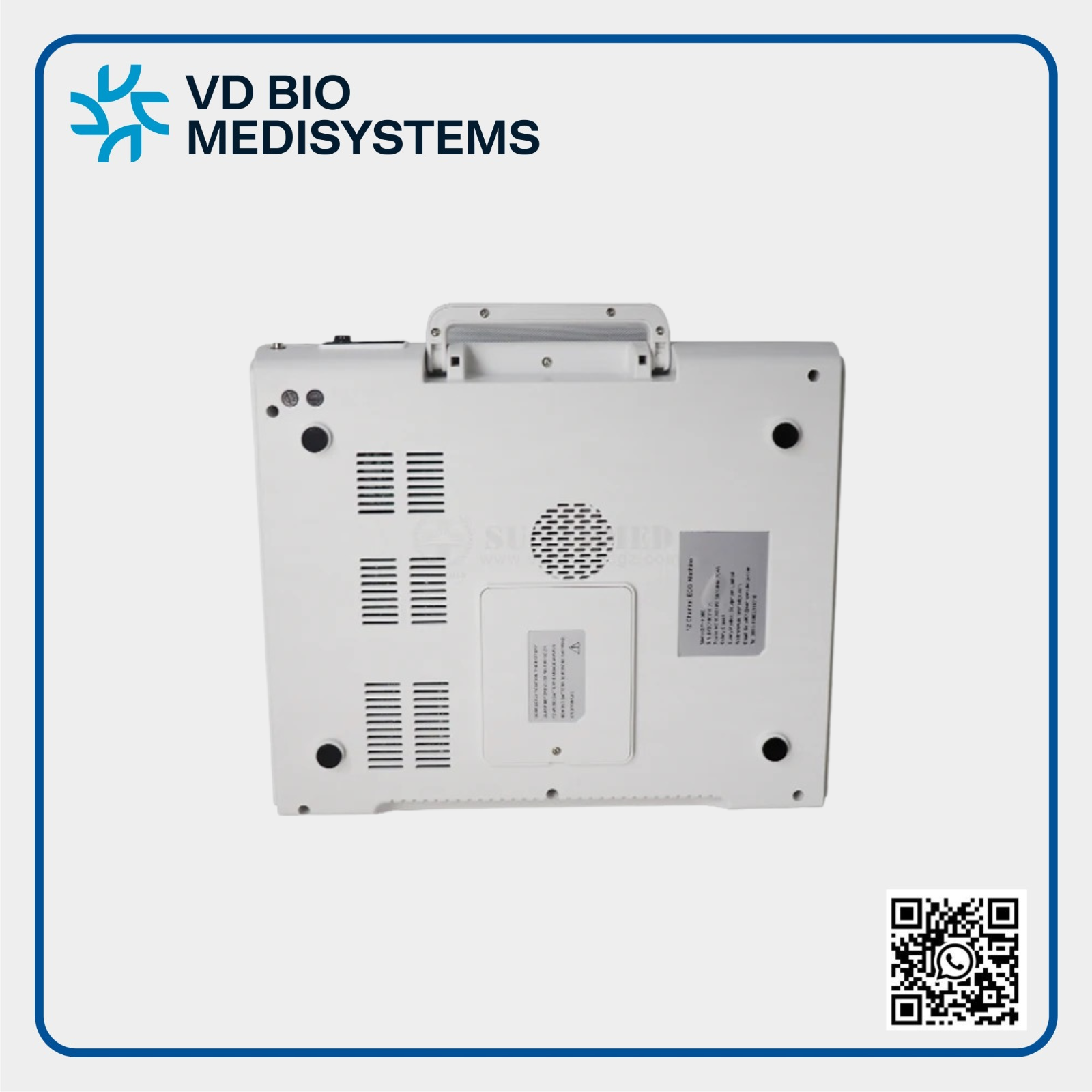

VD Bio Medisystems 3 Channel Ecg VD-300E — Ecg Machine
Key Highlights
Available Variants
Technical Specifications
| Parameter | Value |
|---|---|
| No attributes available | |
Product Description
General Features • 12 Lead ECG Synchronous Sampling System • Thermal Printer With 80mm Print Paper, Synchronization Print • 5.7" Colour Touch-Screen, Both Push-Button and Touch Operation • Automatic Measurement, Calculation, Analysis, Waveform Freezing • Support USB Flash Disk & SD Memory • Data Transmitting to PC via RS232/USB • Patient's Information can be Input • Historical Data can be Reviewed and Printed • Built-in Rechargeable Lithium-ion Battery, AC/DC Power Conversion • Sleep Mode to Save Energy and Extend LCD Life • Portable Design with Hidden Handle, Convenient to Carry • Lead Off & Lack Off Paper Detection Function • 7 Level Printing Thickness Adjustable Technical Specification • Input Mode: Floating and Defibrillation Protection • Voltage Tolerance: +500mV • Frequency Response: 0.05Hz ~ 150Hz (-3dB~+0.4dB) • CMRR: ≥100dB (With AC filter) | | Time Constant: ≥ 3.2s • Patient Leak Current: <10 A | | Calibration Voltage: 1mV +3% • Sensitivity: 5, 10, 20 mm/mV +5%, Standard Sensitivity: 10mm/mV +2% • Noise Level: <15uVp-p || Input Circuit Current: ≤ 0.1 uA • Input Impedance: ≥50M Resolution: 12-bit/1000Hz • Recording Mode: High Resolution Thermal Printing System • • Auto Record: Set Record According to Auto Record Format and Mode, Auto Switching Leads, Measuring and Analysing • Manual Record: Set Record According to Record Format, Manually Switching Leads • Filter: AC, ECG Filter | | Drift Filter: Anti-Drift System • Paper Speed Auto: 25, 50mm/s +3% • Power Supply AC: 100V ~ 240V(50/60Hz), DC: 11.1V/3800mAh Rechargeable Lithium Battery • Fuse Specification: AC Time Lag Fuse (O5×20mm), T1.6AL 250V • Dimension: 360mm x 250mm x 68mm
